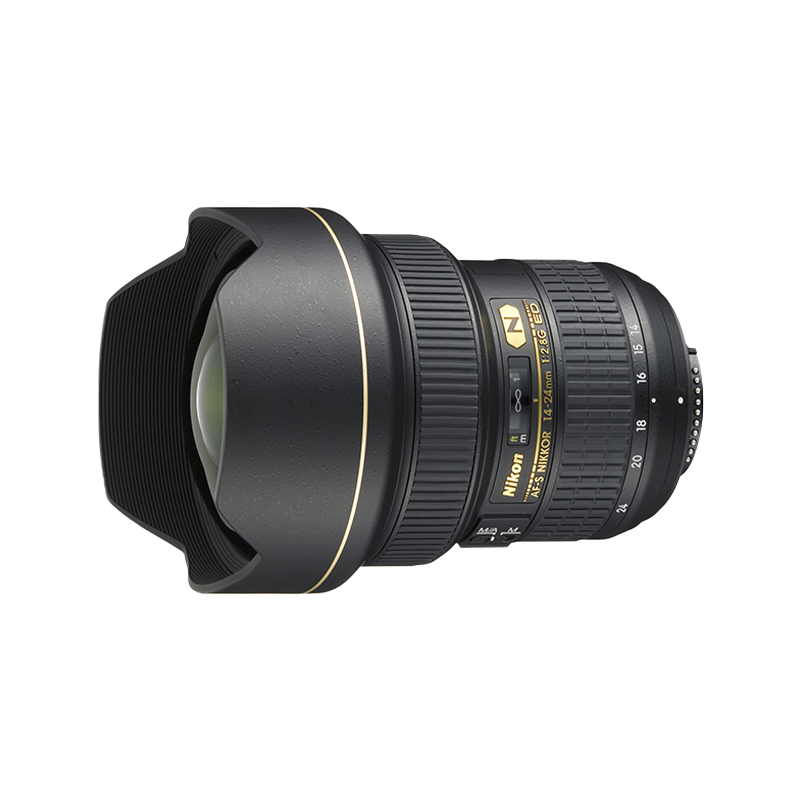

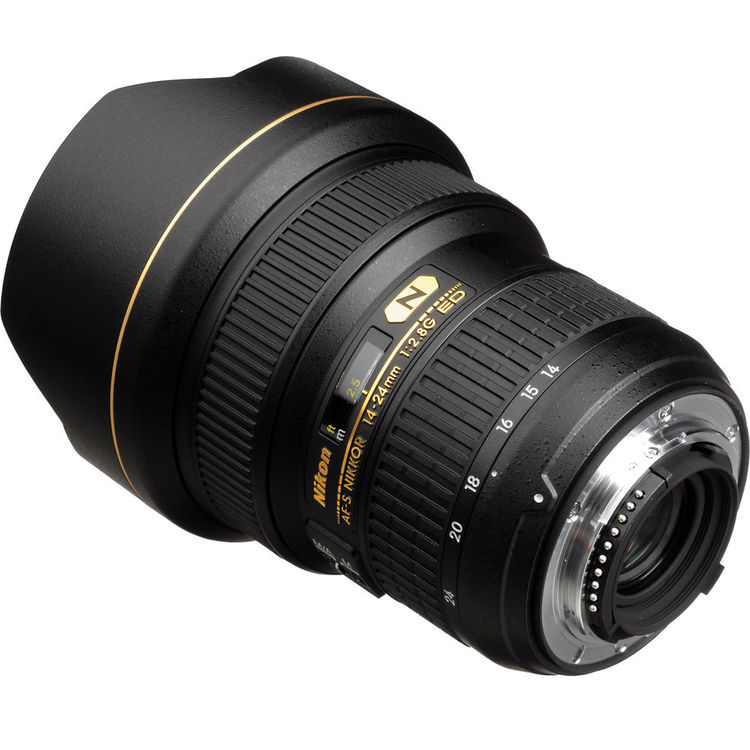

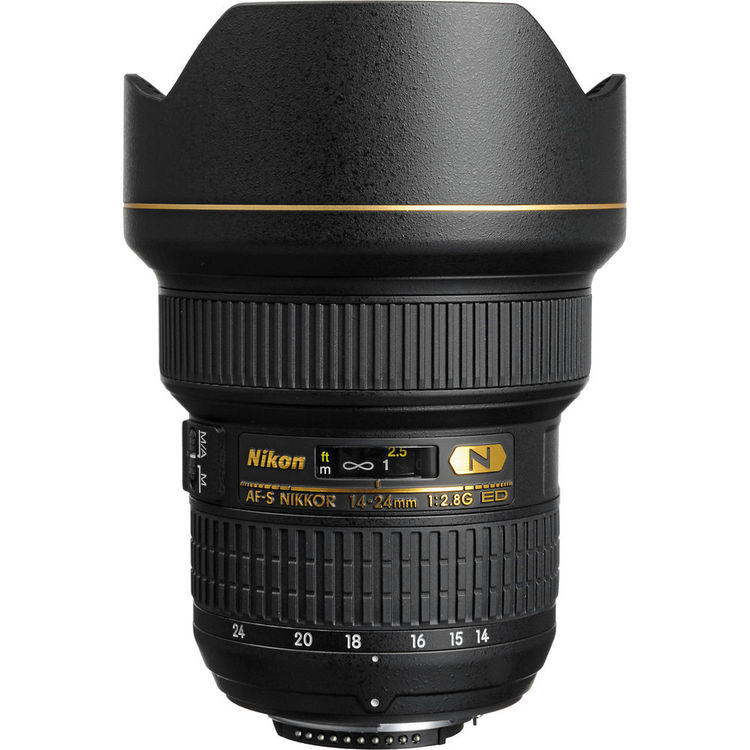

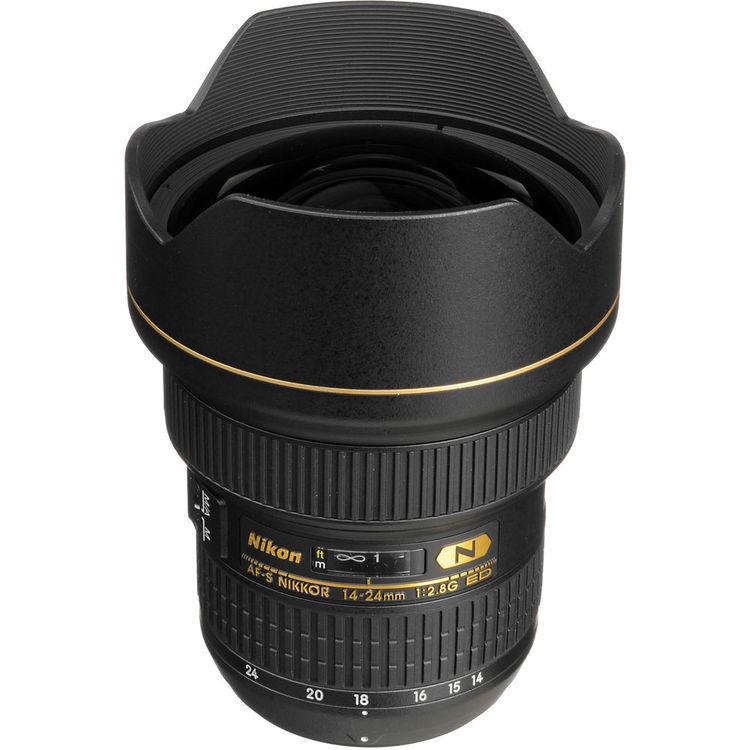

NIKKOR AF-S 14-24mm f/2.8G ED

Silent Wave Motor

AF-S NIKKOR lenses feature Nikon’s Silent Wave Motor (SWM). This technology converts “traveling waves” into rotational energy to focus the optics. This enables high-speed autofocusing that’s extremely accurate and super quiet.

Nano Crystal Coat

An anti-reflective coating developed by Nikon that virtually eliminates internal lens element reflections across a wide range of wavelengths. Nano Crystal Coat solves ghost effects caused by red light and effectively reduces ghost and flare caused by light entering the lens diagonally.

ED (Extra-Low Dispersion) Glass

An optical glass developed by Nikon that is used with normal optical glass in telephoto lenses to obtain optimum correction of chromatic aberrations.

AS

AS stands for Aspherical lens elements. This type of lens utilizes non-spherical surfaces on either one or both sides of the glass in order to eliminate certain types of lens aberration.

M/A

Select NIKKOR lenses have a focusing mode which allows switching from automatic to manual focusing with virtually no lag time by simply turning the focusing ring on the lens. This makes it possible to seamlessly switch to fine manual focusing while looking through the viewfinder.

IF Lens

A NIKKOR lens in which only the internal lens group shifts during focusing. Thus, IF NIKKORS do not change in size during AF operation, allowing for compact, lightweight lenses capable of closer focusing distances. These lenses will be designated with the abbreviation IF on the lens barrel.

Specifications

Mount Type Nikon F-Bayonet

Focal Length Range 14 -24mm

Zoom Ratio 1.7x

Maximum Aperture f/2.8

Minimum Aperture f/22

Format FX/35mm

Maximum Angle of View (DX-format) 90°

Minimum Angle of View (DX-format) 61°

Maximum Angle of View (FX-format) 114°

Minimum Angle of View (FX-format) 84°

Maximum Reproduction Ratio 0.15xx

Lens Constructions Elements 14

Lens Construction Groups 11

Compatible Format(s) FX, DX, FX in DX Crop Mode, 35mm Film

Diaphragm Blades 9

Distance Information Yes

Nano Crystal Coat Yes

ED Glass Elements 2

Aspherical Elements 3

Super Integrated Coating Yes

Autofocus Yes

AF-S (Silent Wave Motor) Yes

Internal Focusing Yes

Minimum Focus Distance 0.28m

Focus Mode Auto, Manual, Manual/Auto

G-type Yes

Approx. Dimensions (Diameter x Length) 98 mm x 131.5 mm

Approx. Weight 1000 g

Lens Type Zoom
